1984-2006 Jeep Wrangler YJ TJ Cherokee XJ Left Inner Axle Shaft Chromoly Dana 30
$198.00
- SKU: 10007743
- Brand: Dana/Spicer
- Weight: 7.0
- Shipping: Calculated at checkout
2 in stock

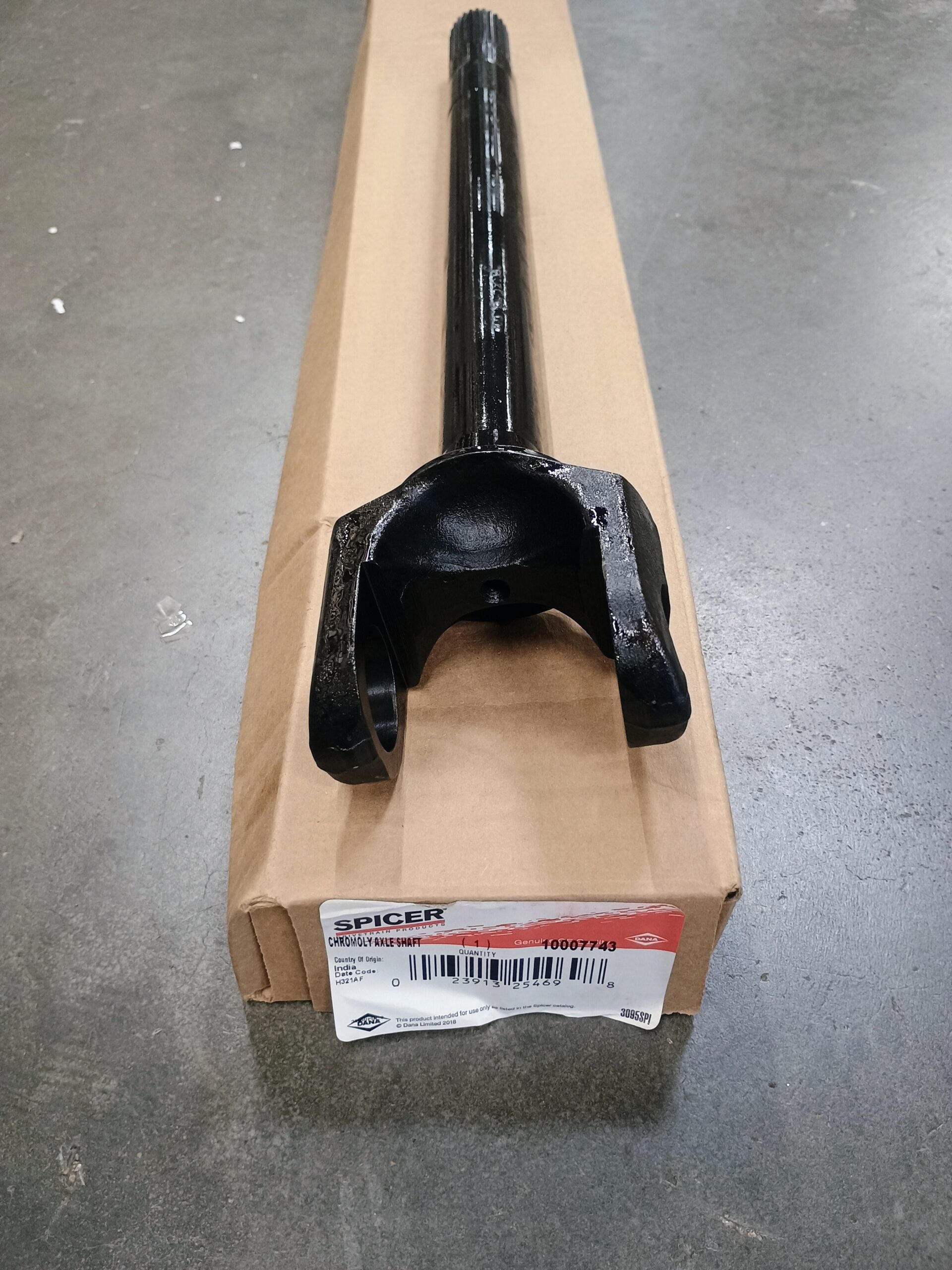

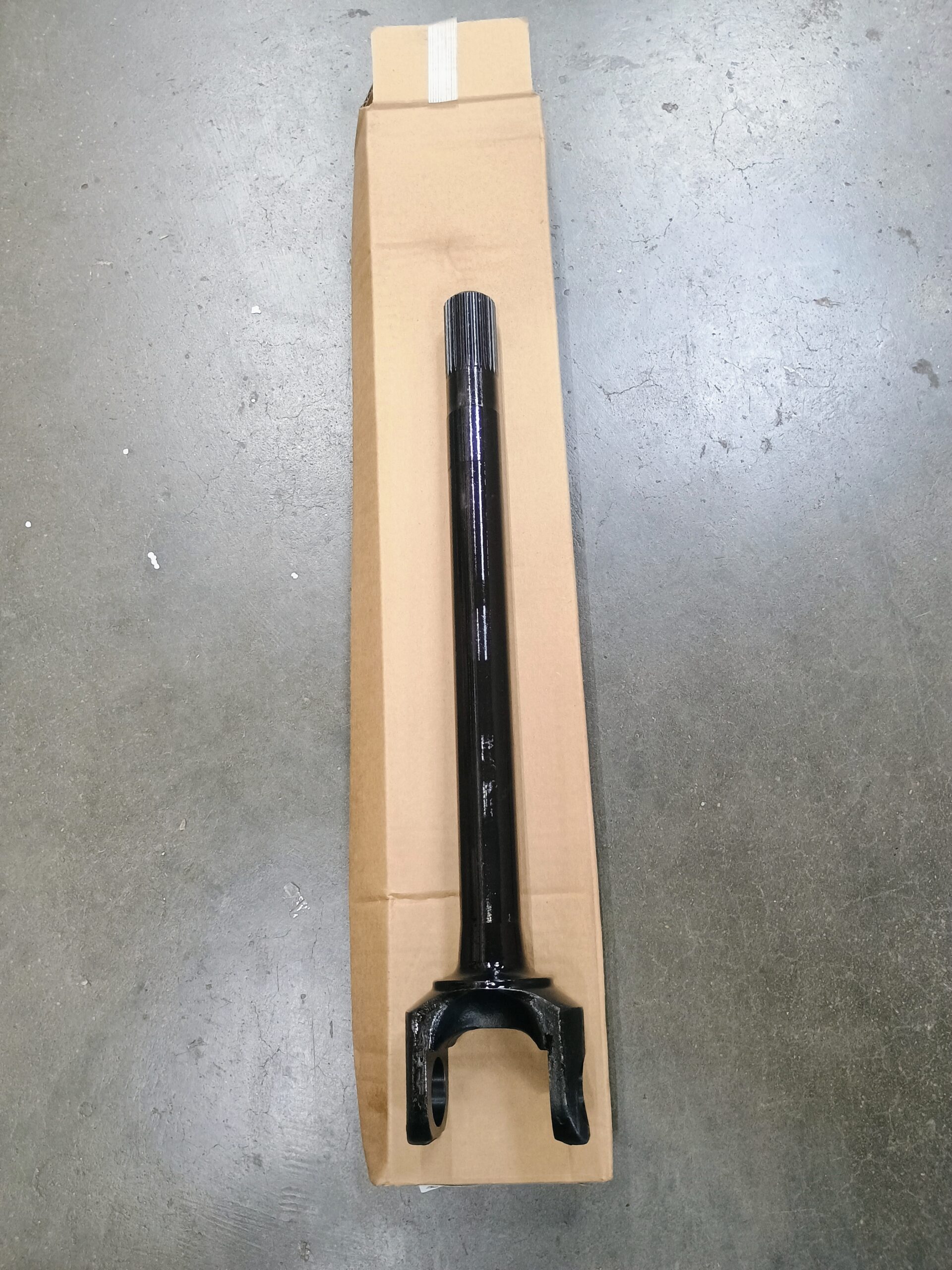

This is a genuine Dana/Spicer left inner axle for the Dana 30 4X4 front axle in 1984-2006 Jeep Wrangler and Cherokee vehicles. This is a chromoly axle. This replaces stock axle part number 73898-1X.
| Brand | Spicer |
| Axle Model | DANA 30 |
| Material | Steel |
| Invoice | INNER YOKE SHAFT |
| Axle Cover Bolt Hole Qty | 10 |
| ABS/Non-ABS | Non-ABS |
| Axle Type | Inner |
| Inner Shaft Length (In) | 16.600 |
| Length (IN) | 16.540 |
| Spline Count | 27 Inboard |
| Inner Shaft Spline | 27 |
| Cover Bolt Quantity | 10 |
| Includes Universal Joint | N |
| Includes Tone | N |
| Universal Joint Series | 1310 |
| Weight | 7.0 lbs |
|---|---|
| Dimensions | 14 × 4 × 4 in |
