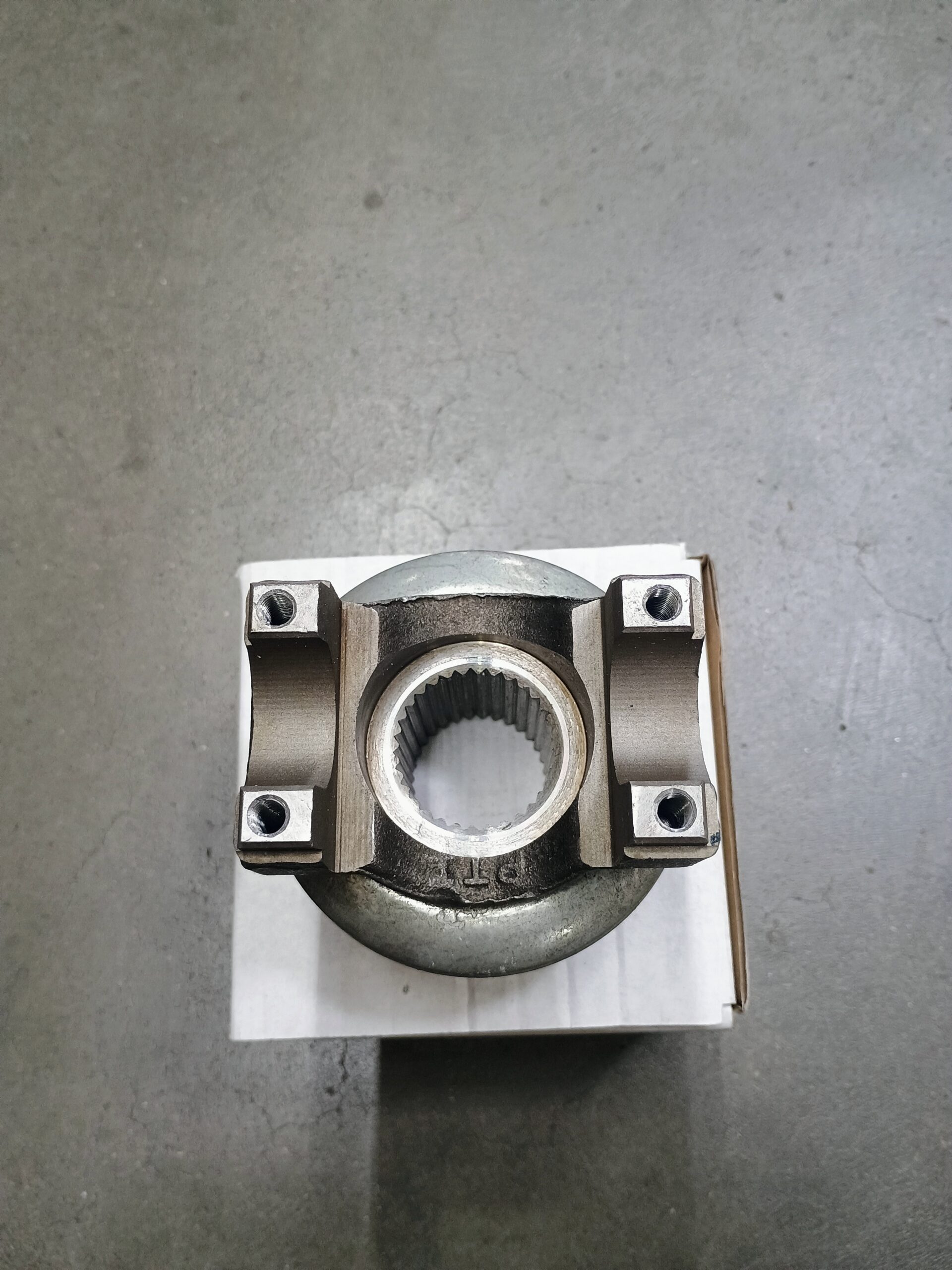

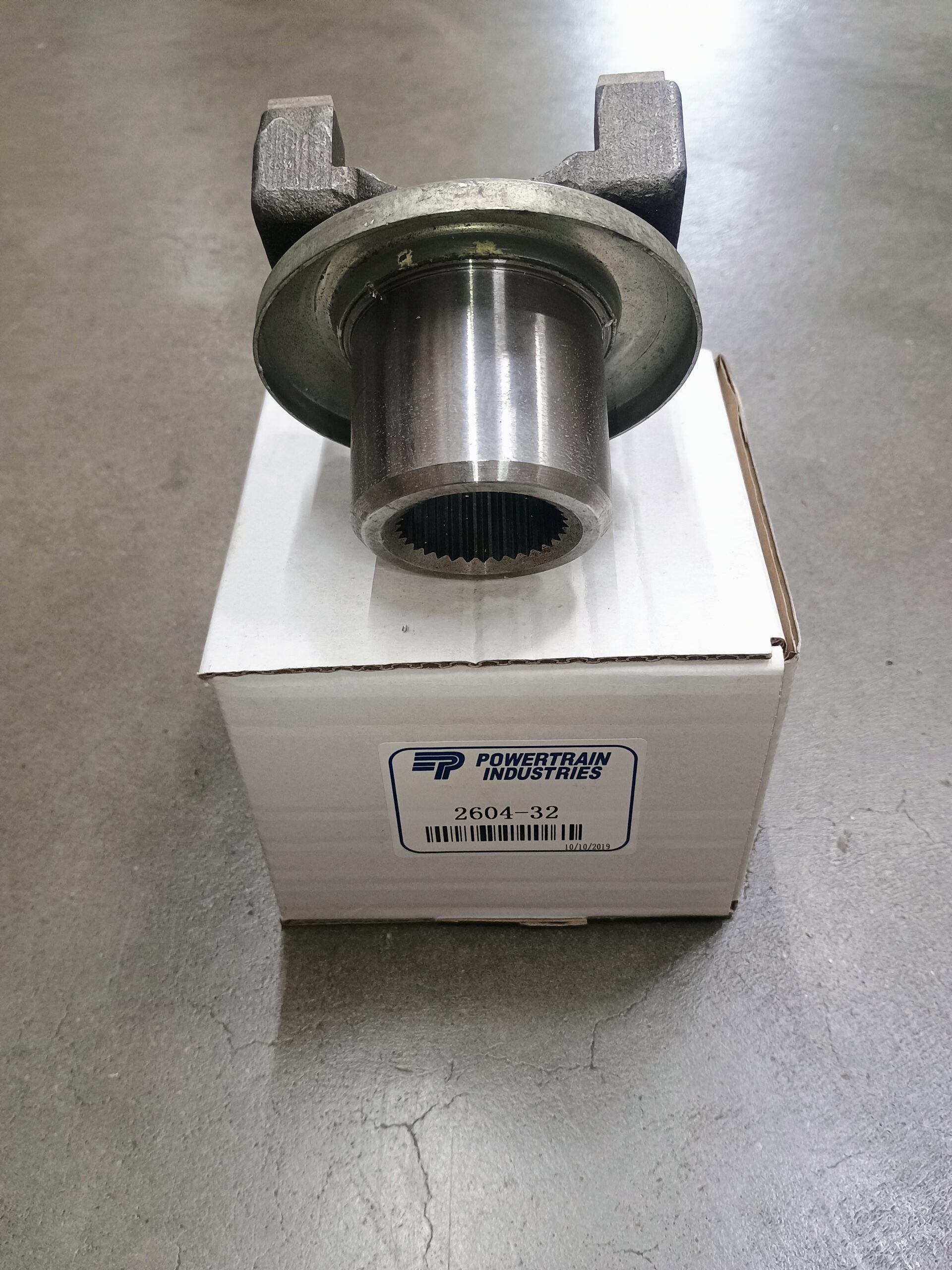

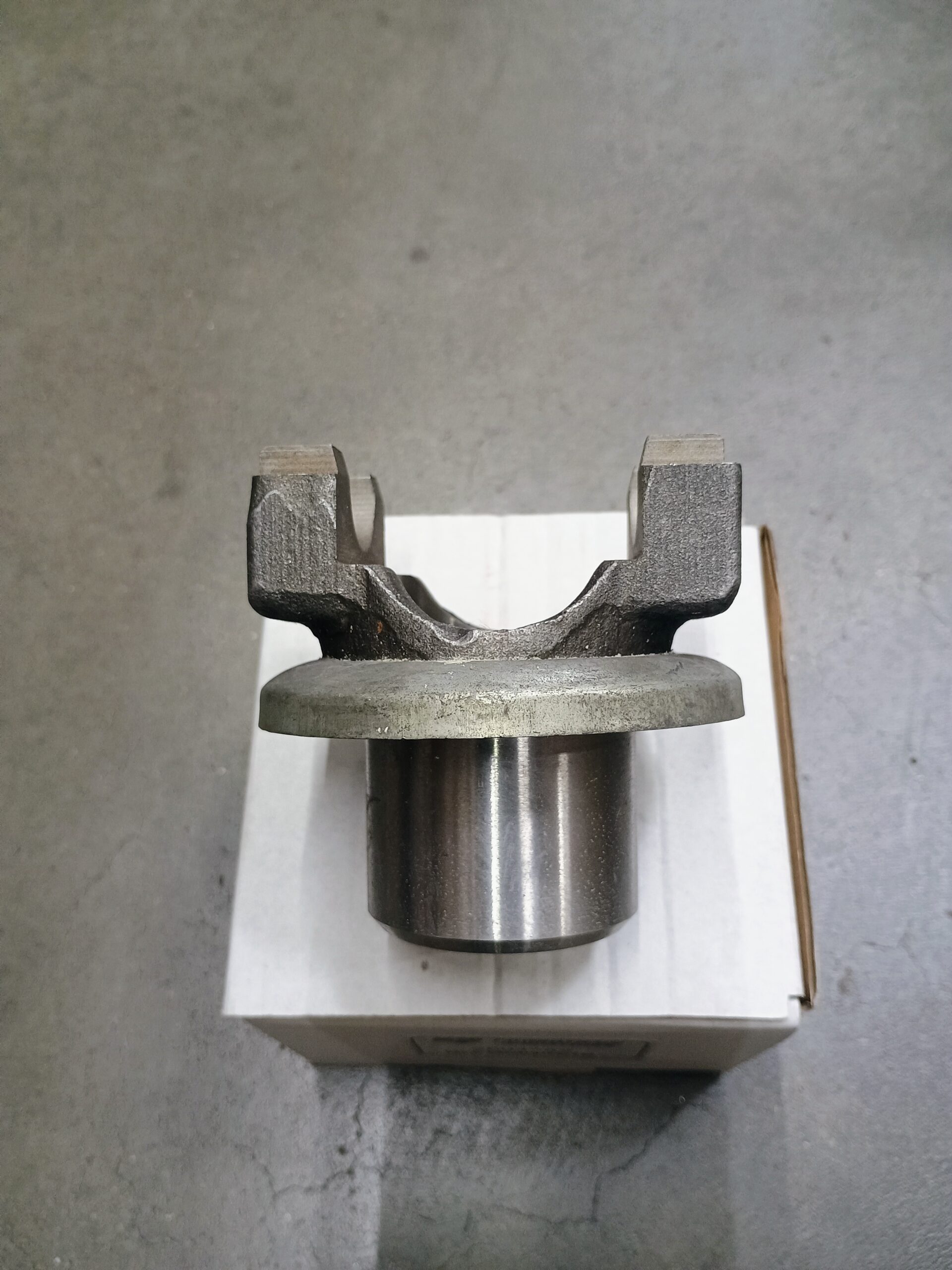

1974-1988 Dodge Transfer Case 7260 32 Spline Yoke 203, 205, 208 4X4
$70.00
- SKU: 2604-32
- Brand: Powertrain
- Weight: 2.6
- Shipping: Calculated at checkout
2 in stock
- Tc Model: NP 203/205
- Spline: 1.401-32
- Thru Hole: 2.000
- Ground Hub Diameter: 2.125
- Centerline To End: 3.625
- Ujoint: 7260
- Notes: Strap type
- This 7260 New Process 203/205 transfer case yoke and was found on the rear transfer case output of Dodge Ramchargers from 1974-1979.
This yoke takes strap kit 2-70-68X.
It was also on the Ramcharger New Process 208 transfer case from 1980-1988. The transfer case seal may need to be changed for this application.
