Dodge 10.5 11.5 AAM Rear Pinion Flange Yoke 2003+ 4 Bolt
$55.00
- SKU: 40062272
- Brand: AAM American Axle Manufacturing
- Weight: 5.0
- Shipping: Calculated at checkout

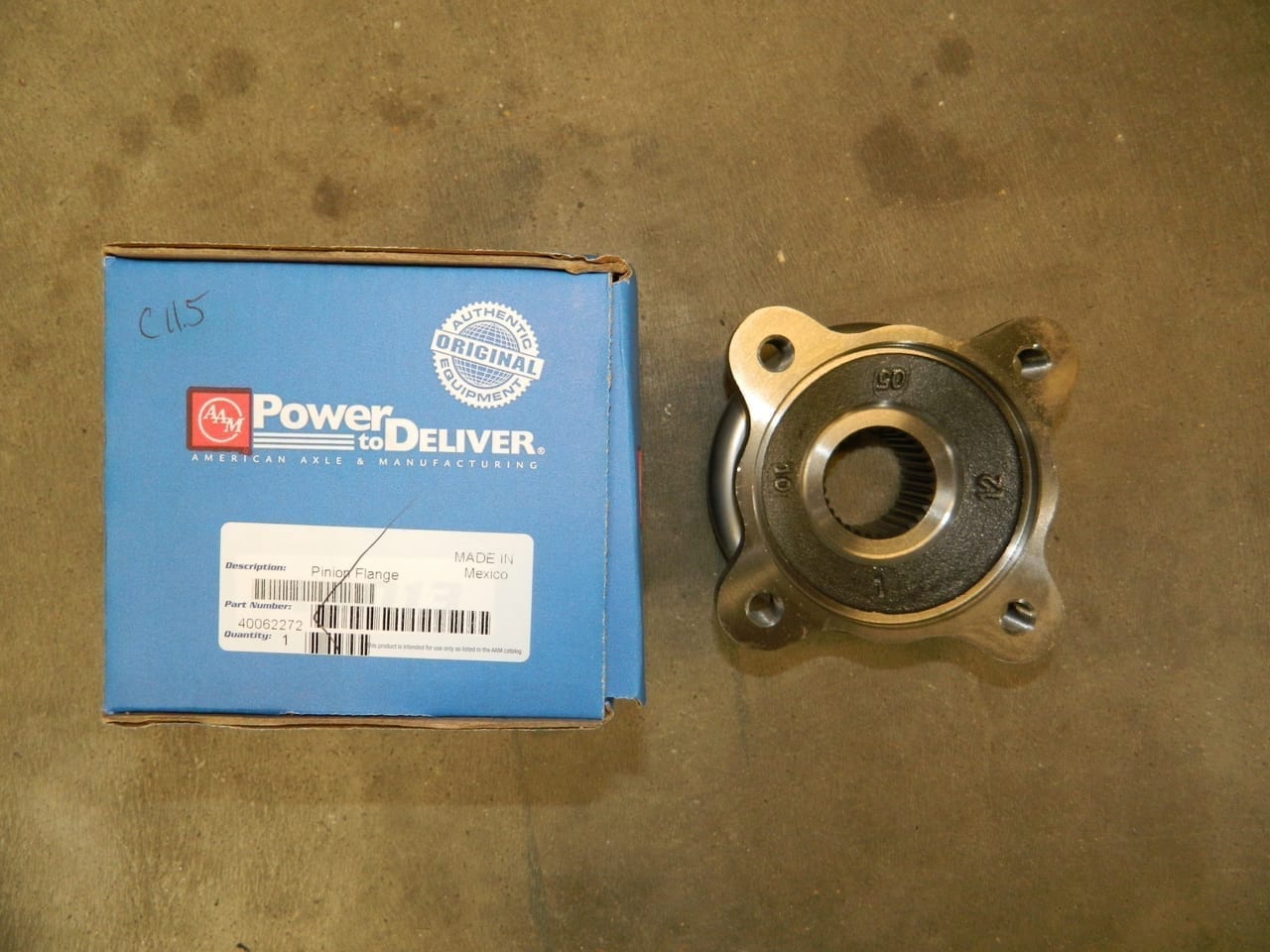

This is a genuine AAM pinion flange yoke for the 10.5 and 11.5 14 bolt rear differential found in 2003+ Dodge 3/4 and 1 ton trucks. This is used with the 26064030 pinion seal. It already has the wear sleeve on the seal surface. This replaces the perfectly square ones found on some early models which was part number 40047864 also part numbers 74002855, 4002285, 40023921, and 5127609AA.
| Weight | 5.0 lbs |
|---|---|
| Dimensions | 6 × 4 × 2 in |
Be the first to review “Dodge 10.5 11.5 AAM Rear Pinion Flange Yoke 2003+ 4 Bolt”
You must be logged in to post a review.
| Make | Model | Year |
|---|---|---|
| Dodge Ram | 2500 | 2003 - 2004 |
| Dodge Ram | 2500 | 2005 - 2006 |
| Dodge Ram | 2500 | 2007 - 2008 |
| Dodge Ram | 2500 | 2009 - 2010 |
| Dodge Ram | 2500 | 2011 - 2012 |
| Dodge Ram | 2500 | 2013 - 2014 |
