DODGE RAM TRUCK 3500 2500 4X4 1480/1485 2003+ Slip Yoke Transfer Case 271
$105.00
- SKU: 40041575
- Brand: AAM American Axle Manufacturing
- Weight: 7.0
- Shipping: Calculated at checkout
4 in stock

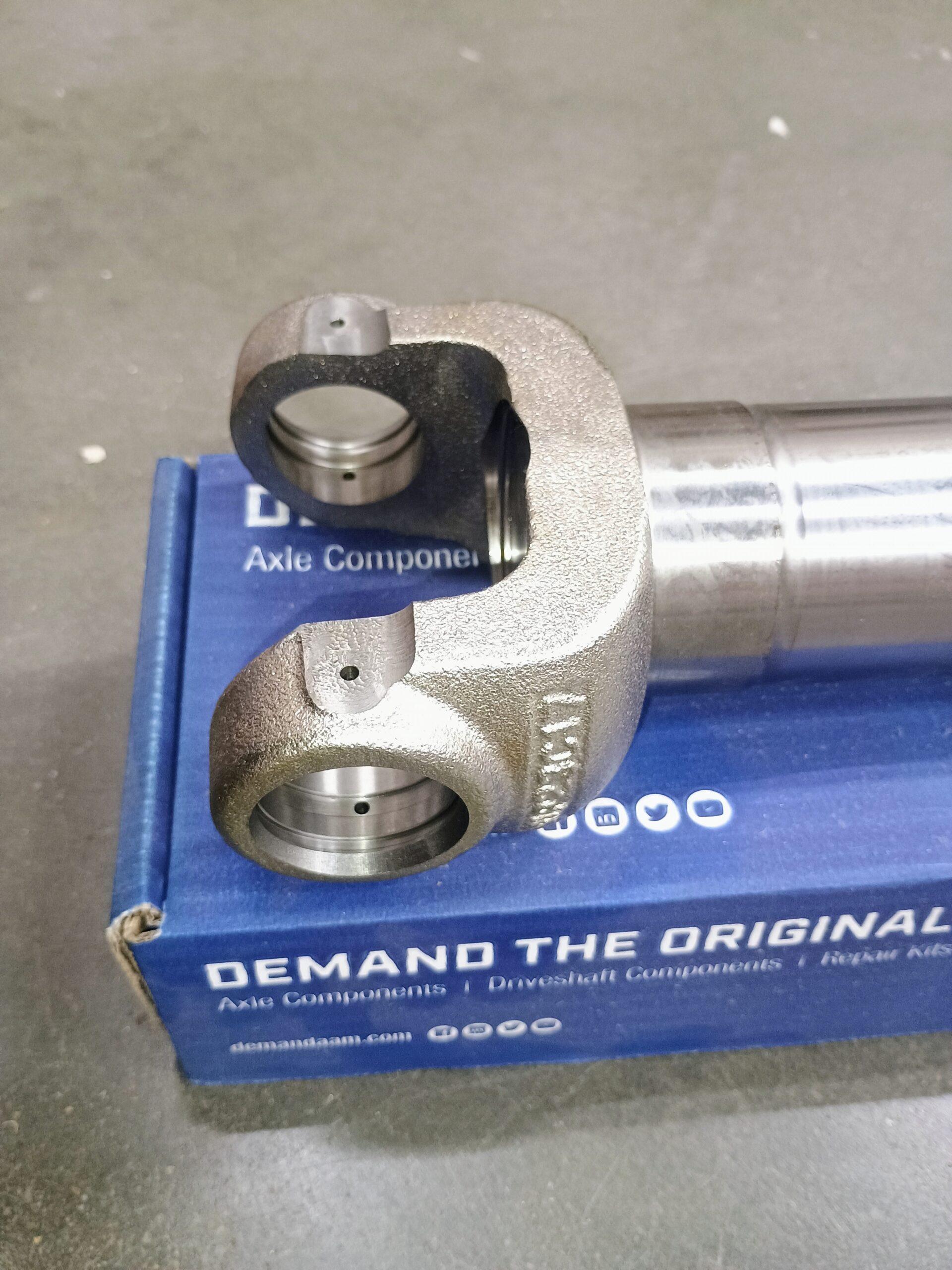

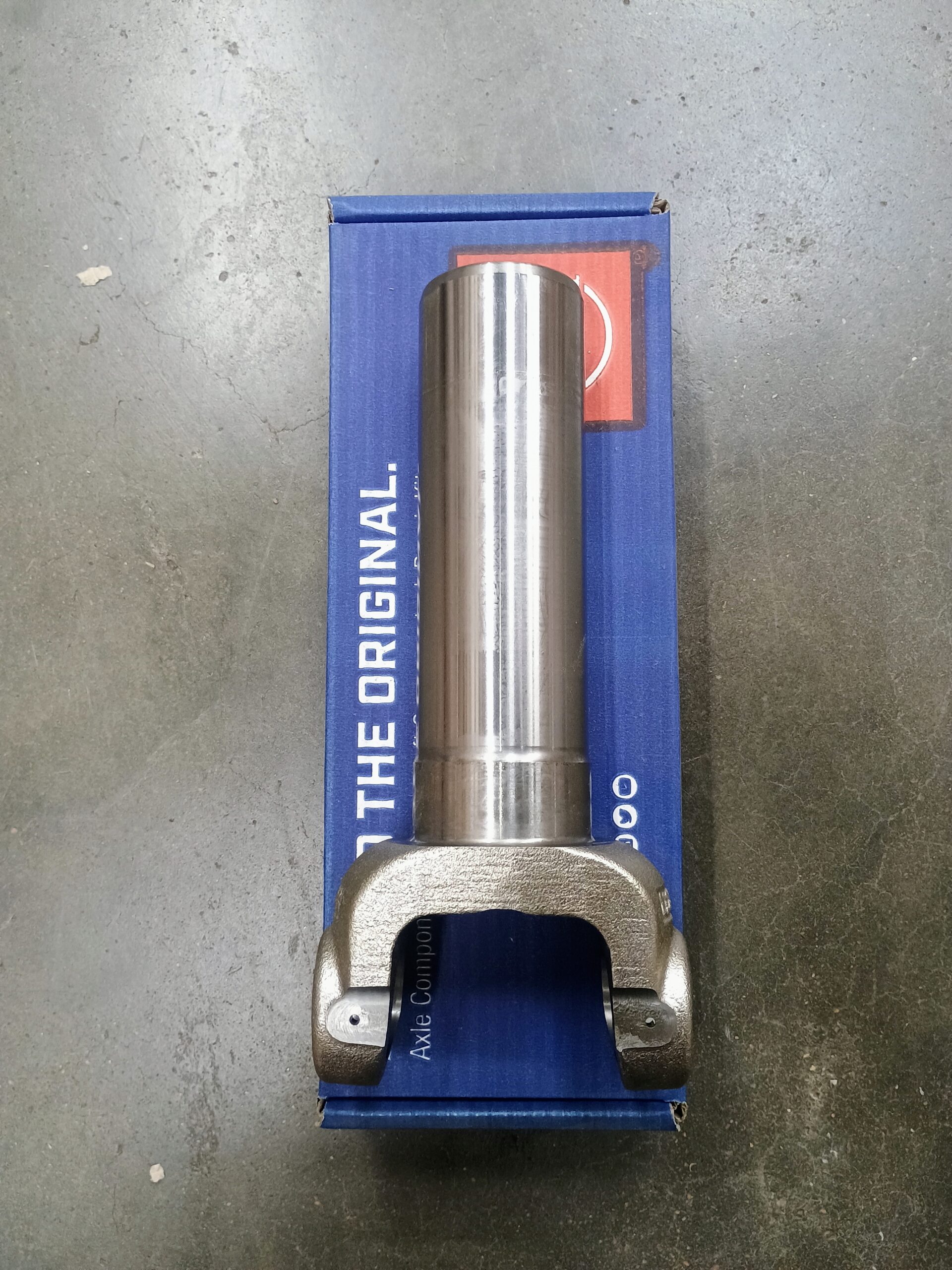

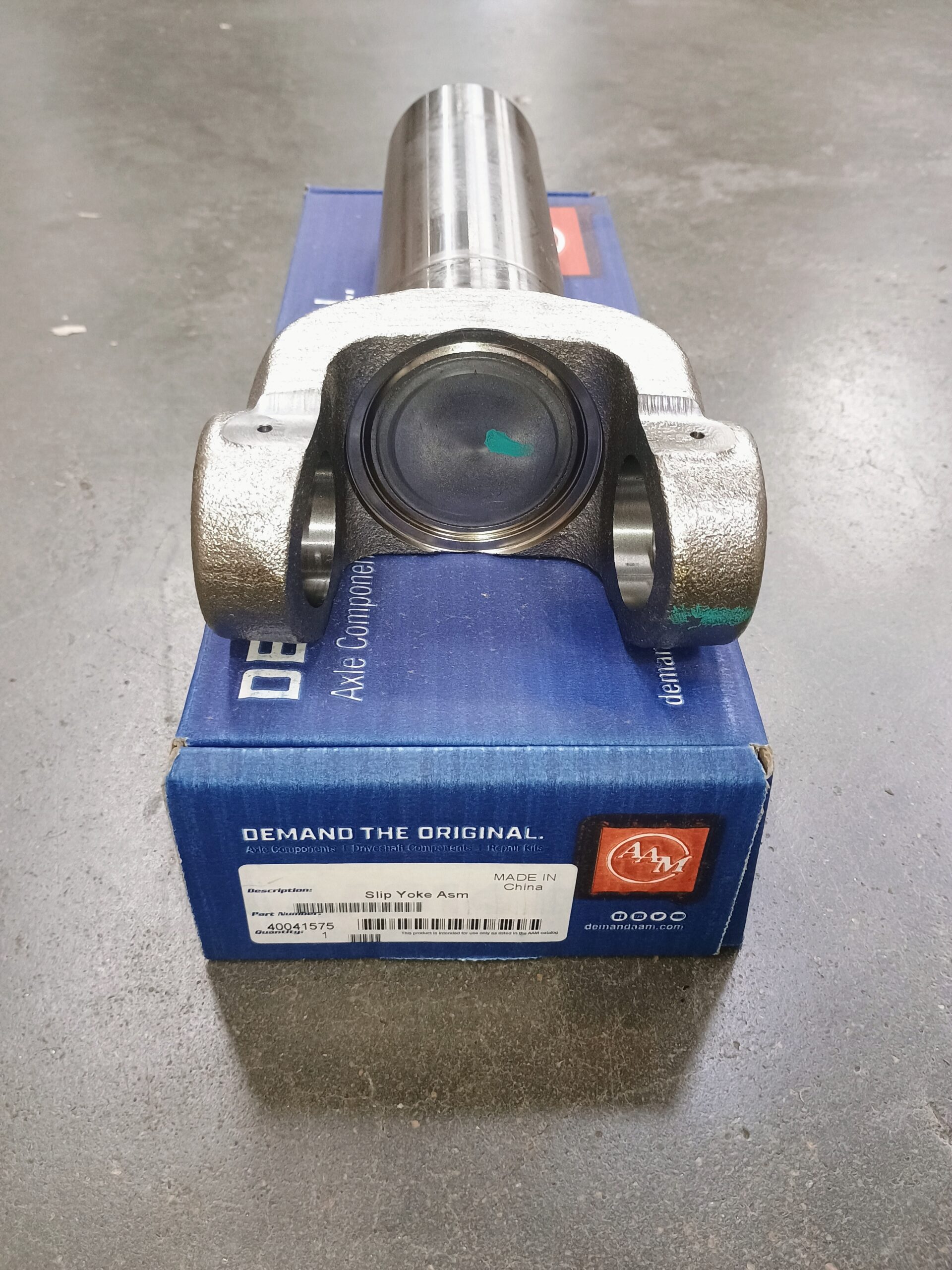

This is a genuine AAM slip yoke that fits the 271 or 273 transfer case found in 2003-2011 Dodge Ram 2500 and 3500 series trucks. Technical specifications, 2.299″ Ground Hub (barrel diameter), 1.74803 spline diameter 34 spline, 9.550″ C/l to end. This slip uses the AAM u-joint number 74081485. Please check the u-joint size in your particular truck prior to ordering, as there were different sizes from the factory. This also interchanges with AAM part number 40038571. Dodge Ram part numbers are 68003178AA, 40040690, 40022659, 40041575, 05183084AA, 68029383AB, 5183084AA, 5102167AA, 5102167AB, 5159996AA. This yoke is nickel plated.
| Weight | 7.0 lbs |
|---|---|
| Dimensions | 6 × 4 × 2 in |
Be the first to review “DODGE RAM TRUCK 3500 2500 4X4 1480/1485 2003+ Slip Yoke Transfer Case 271”
You must be logged in to post a review.
| Make | Model | Year |
|---|---|---|
| Dodge Ram | 2500 | 2003 - 2004 |
| Dodge Ram | 2500 | 2005 - 2006 |
| Dodge Ram | 2500 | 2007 - 2008 |
| Dodge Ram | 2500 | 2009 - 2010 |
| Dodge Ram | 2500 | 2011 - 2012 |
| Dodge Ram | 3500 | 2003 - 2004 |
| Dodge Ram | 3500 | 2005 - 2006 |
| Dodge Ram | 3500 | 2007 - 2008 |
| Dodge Ram | 3500 | 2009 - 2010 |
| Dodge Ram | 3500 | 2011 - 2012 |
