2019+ GM 9.76 Rear Differential Bearing Rebuild Kit 12 Bolt Cover Chevy 1500
$135.00
- SKU: 74067034
- Brand: AAM American Axle Manufacturing
- Weight: 9.0
- Shipping: Calculated at checkout
2 in stock

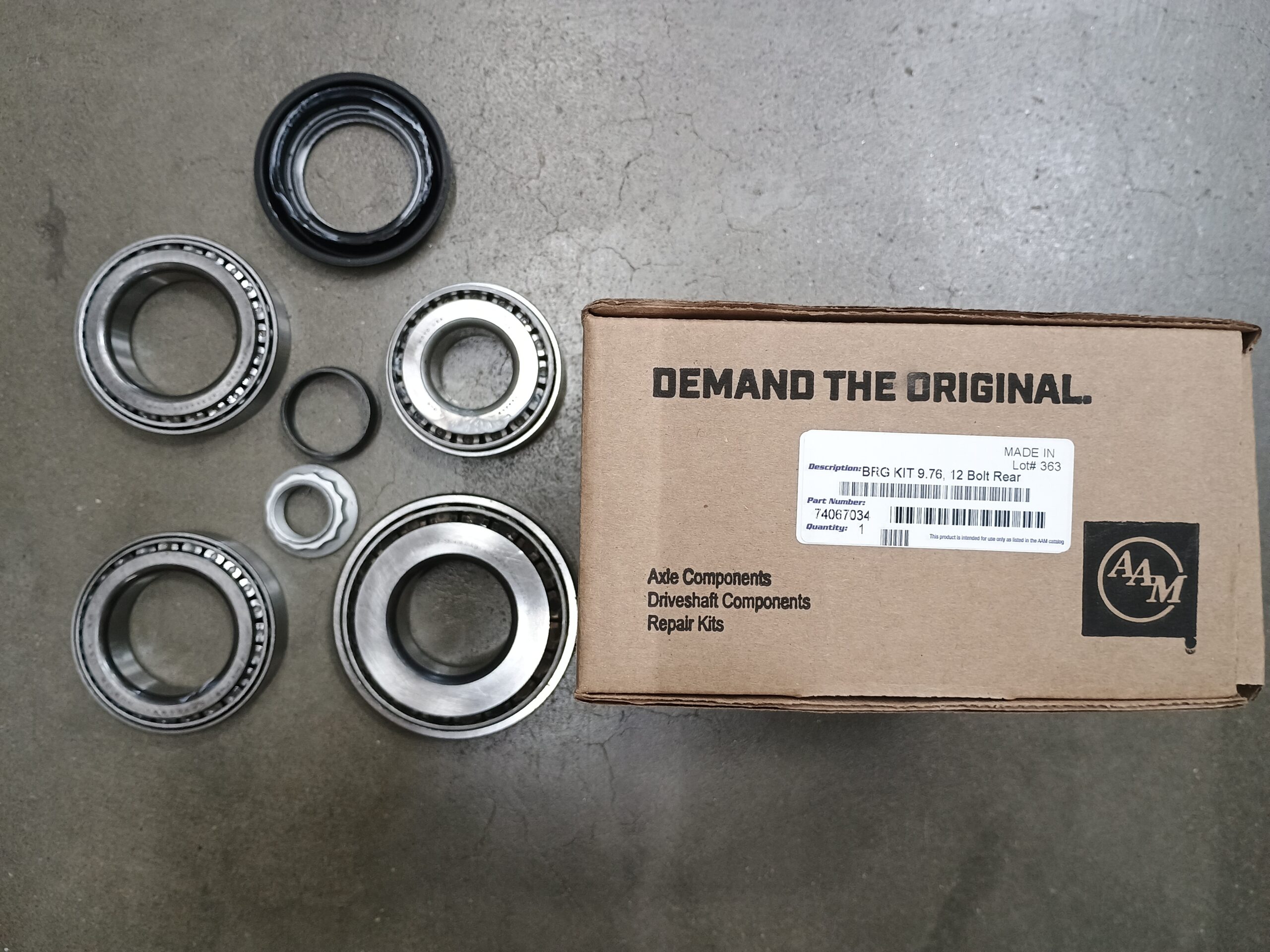

This is a genuine AAM bearing kit for the 9.76 rear differential found in many 2019+ GM 1/2 ton trucks. This differential has a 12 bolt rear cover. The pinion seal is a 40169443. The inner pinion bearing is a FAG F-580408.01.RTR1. The outer pinion bearing is a HM89249/HM89210. The side bearings are a NP366854/NP428996.
| Weight | 9.0 lbs |
|---|---|
| Dimensions | 8 × 8 × 3 in |
