Ford Jeep Dana/Spicer 4 Bolt Flange Yoke 1310 Series Universal Joint Small Bolt Pattern 7.5 8.8 Driveshaft Driveline
$29.95
- SKU: 2-2-939
- Brand: Dana/Spicer
- Weight: 1.8
- Shipping: Calculated at checkout

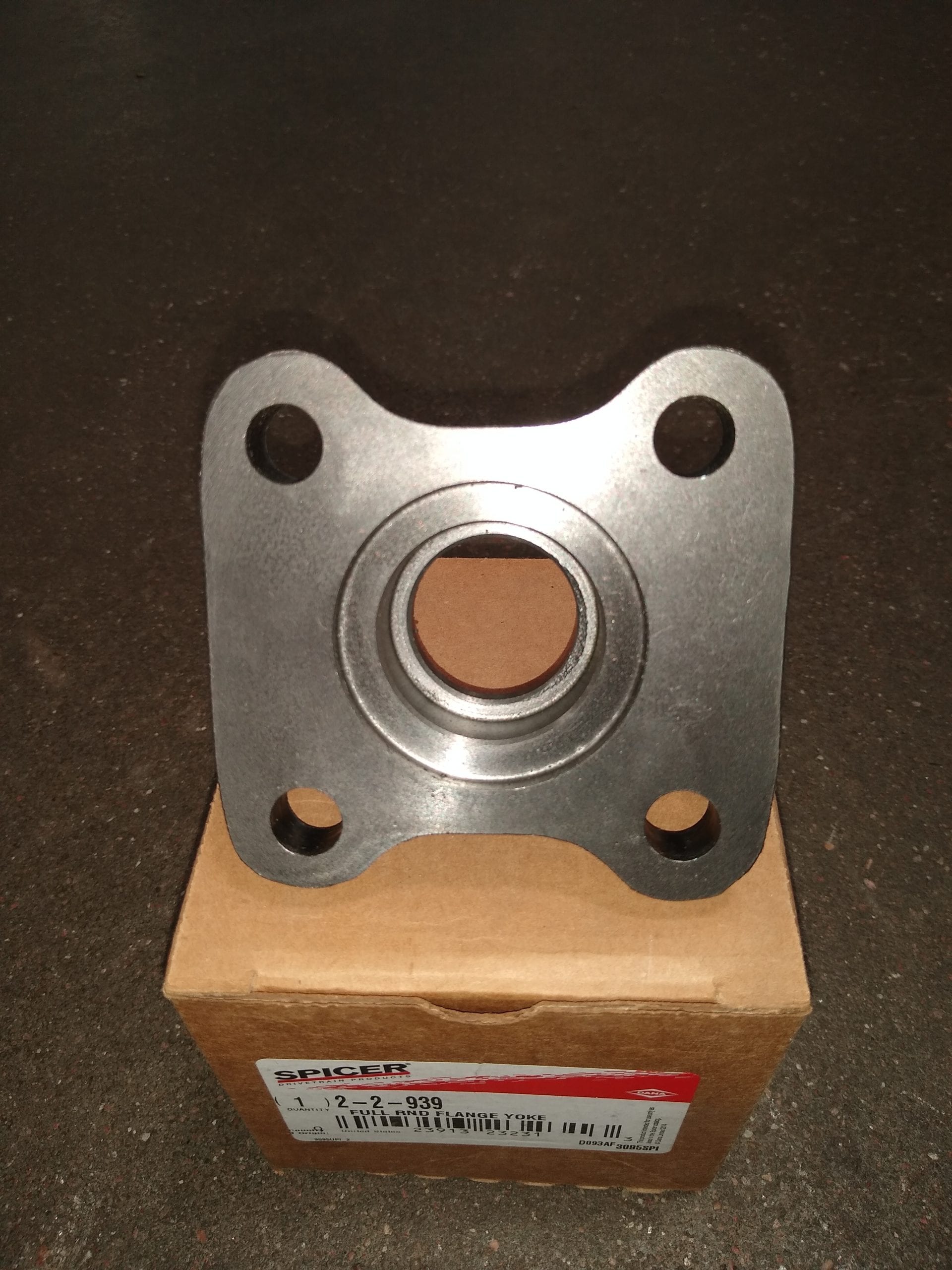

This is a genuine Dana/Spicer u-joint yoke flange that fits many common domestic applications including Ford’s and Jeep’s. This is for a 1310 series universal joint. Here are some specs from the Dana website:
| Brand | Spicer |
| Series | 1310 |
| Flange Or Swing Dia. In. (A) | 4.500 |
| Bolt Circle Dia. In. (B) | 3.500 |
| Bolt Hole Dia. In (B) | .500 – DRILLED |
| Number Of Bolt Holes | 4 |
| Pilot Dia. M=Male F=Female (C) | 2.000 – FEMALE |
| Flange Face To C/L In. (G) | 1.650 |
| Material | Steel |
| Outside Yoke Dimension In.(E) | 3.469 |
| Yoke Bearing Dimension In. (D) | 1.062 |
| Design | Square |
| VMRS | 024002016 |
| Package Type | EACH |
| Package Qty | 1 |
| Weight | 1.74 LB |
| Country of Origin |
United States |
| Weight | 1.8 lbs |
|---|---|
| Dimensions | 6 × 6 × 6 in |
