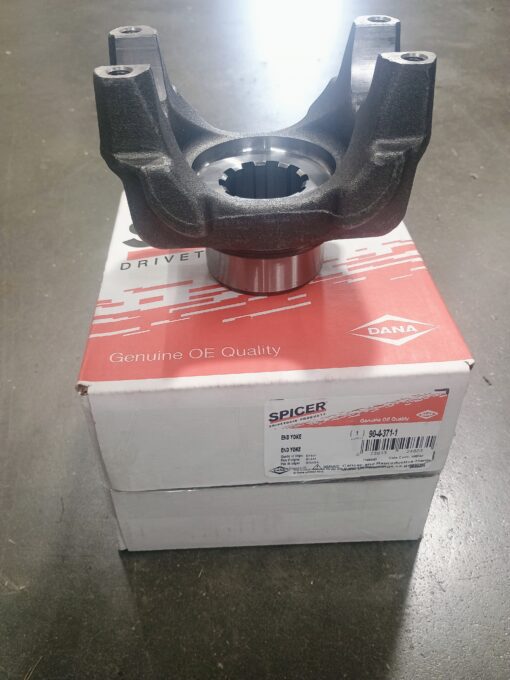

SPL90 Pinion Yoke Pulling Truck Timken Rockwell Meritor 1 3/4-10 Spline
$160.00
- SKU: 90-4-371-1
- Brand: Dana/Spicer
- Weight: 8.0
- Shipping: Calculated at checkout
1 in stock
JOINT SERIES: SPL90
D DIMENSION: 1.625
E DIMENSION: 4.957
YOKE STYLE: Bearing Strap
Q LENGTH THRU HOLE: 1.938
R HUB DIAMETER: 2.5
S CENTERLINE TO END: 4.125
SPLINE COUNT: 10
SPLINE OD: 1.75
Also fits some manual transmissions.
| Weight | 8.0 lbs |
|---|---|
| Dimensions | 6 × 6 × 6 in |
